Bakkie Cranes and Mini Truck Cranes from 1 to 18 tm line of telescopic cranes, made to satisfy customers in need of a crane which is compact, lights and easy to operate.
Thanks to their extremely compact dimension all our cranes in the HA bakkie crane series are projected to be mounted on small equipment such as: cat trailer, tracked vehicle, pickup, small trucks and stationary mounting.
Control panel with customized position in order to always have the more ergonomic position.
| Controls: | Controls guard panel by ABS |
| Cylinders: | Independent telescopic cylinders |
| Other: | Hexagonal section extensions |
| Design | Design in accordance with DIN15018 – EN 12999 |
| Certification | Fatigue test classification: B3 |
| Garage Length: | 2.59m / 8'6" |
| Gross Weight: | 3500kg |

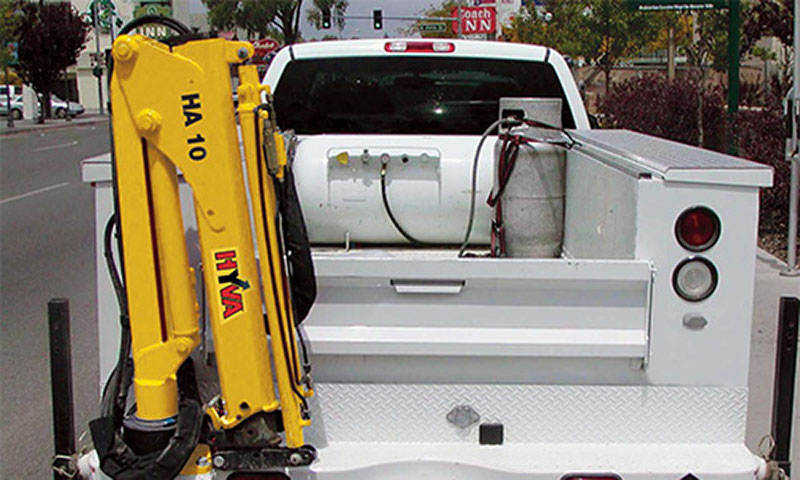

Hyva bakkie crane / truck crane HA10
Lifting moment: 1.0 Tm
Max hydraulic Outreach: 1.89 – 2.77 m
Load Max Outreach: 315 – 490 Kg
Hyva HA15
Lifting moment: 1.3 Tm
Max hydraulic Outreach: 1.89 – 2.77 m
Load Max Outreach: 440 – 675 Kg
Hyva HA22
Lifting moment: 2.0 Tm
Max hydraulic Outreach: 2.15 – 4.16 m
Load Max Outreach: 410 – 930 Kg
Hyva HA28
Lifting moment: 2.3 Tm
Max hydraulic Outreach: 2.25 – 4.16 m
Load Max Outreach: 605 – 1220 Kg
Hyva HA33
Lifting moment: 3. 4 Tm
Max hydraulic Outreach: 2.48 – 5.89 m
Load Max Outreach: 520 – 1390 Kg
Hyva HA100
Lifting moment: 9.0 Tm
Max hydraulic Outreach: 4.20 – 9.55 m
Load Max Outreach: 770 – 2150 Kg
